Equipment & Consumables Distribution List
GROUND ENGAGEMENT TOOLS (GET)
DTH Drill Bits & Top Hammer Bits
Life: 300m – 500m depending on various rock formation and treatment
Tricone Bits
Life: 300m – 1500m depending on various rock formation and treatment

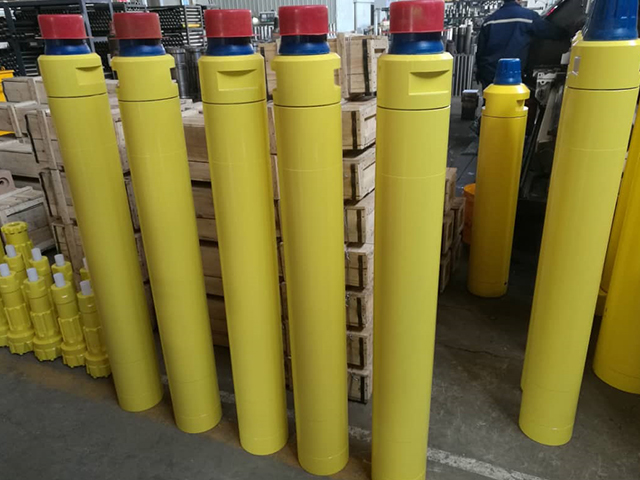

DTH Hammer & Top Hammer
Life: 5000m depending on various rock formation
Drill Rods
Life: 5000m depending on various rock formation
EXPLOSIVES & ACCESSORIES

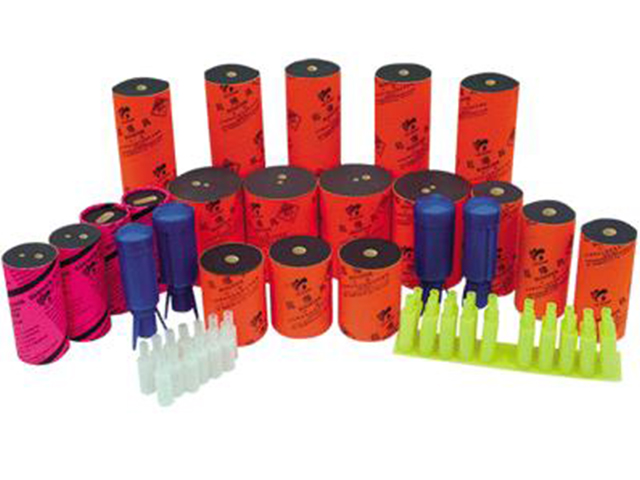

BOOSTERS
Properties
- Components: TNT/RDX (60/40)
- Unit Weight: 150g, 400g & 800g
- VOD: ³7000m/s
- Density: 1.6g/cm3
- Sensitivity: 100% initiated by No. 8 detonator and 8g detonating cord
- Water proof: Immersing in water for 24 hours under 0.7MPa, 100% initiated by No.8 detonator and 8g/m detonating cord.
- Shell: Plastic Catridge
- Shelf Life: 5 years
- Case dimension: 35×5×14.5 cm
DETONATING CORD
Properties
- Core Load: 3.6, 5, 8, 10 &12g/m
- Shell outside diameter: 6mm
- VOD: >6000m/s
- Tensile resistance: >400N
- Sensitivity: The cord can detonate completely through varieties of connecting union such as over-lapping or reef knot of the cords.
- Water-proof property: The detonation transmitting ability remains reliable after immersing in 5meter water or water tank with a water pressure of 50 KPa for 5 hours.
- Temperature range: Detonating property remains reliable after conditioning at 50±2℃ for 6 hours and at -40± 2 ℃for 2 hours.
ELECTRONIC DETONATORS
Properties
- Shell material: Aluminum
- Shell length: 50-90 mm
- Shell outside diameter: 7.35 mm
- Legwire material: copper
- Legwire diameter: 0.5 or 0.6 mm
- Legwire length: 2m (or as per user’s requirement)
- Safe current: Connected with 0.20A constant D.C. current for 5 minutes, is shall not explode.
- Firing current: 0.45A for single piece.
- Series detonating current: When 20 detonators are connected in series with 1.2A constant D.C. current, all 20 detonators shall explode.
- Vibration resistance: Vibrated with a frequency of 1Hz at a height of 150mm for duration of 10 minutes, it shall not explode or become damaged in its structure.
SHOCKTUBE DELAY DETONATORS
Properties
- Trunkline
- Primadet
- EZ Det
EXPLOSIVES STORAGE MAGAZINE

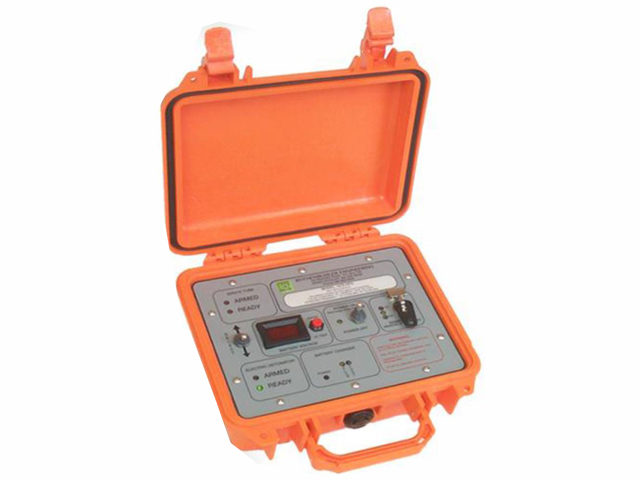

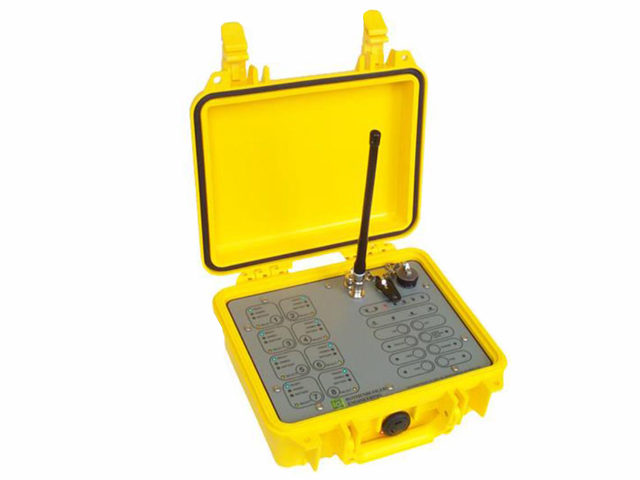

REMOTE FIRING SYSTEM
- 1670 Remote Firing System
- 1673 Remote Firing System
1670 CONTROLLER
REMOTE FIRING SYSTEM
1670 Remote Firing System
Description
1670 Remote Firing System with:
1 x Controller Unit
Charges
Initiators
1 x Dual Output Remotes
2 x Antennas
Initiator Keys
2 x Battery
1 x Shock Tube
1670 DUAL REMOTE 1WATT
1670 Remote Firing System with:
1 x Controller Unit
Chargers
Initiators
2 x Dual Output Remotes
2 x Antennas
Initiator Keys
3 x Battery Charges
2 x Shock Tube
1670 Remote Firing System with:
1 x Controller Unit
4 x Antennas
3 x Dual Output Remotes
3 x Shock Tube Initiators
4 x Battery Charges
Initiator Keys
Description

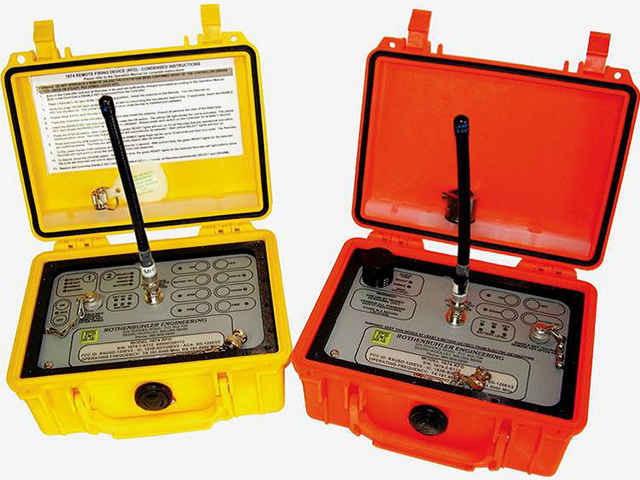

1674 Remote Firing System with:
1 x Controller Unit
Charges
Initiators
1 x Dual Output Remotes
2 x Antennas
Initiator Keys
2 x Battery
2 x Shock Tube
1674 Remote Firing System with:
1 x Controller Unit
Charges
Initiators
2 x Dual Output Remotes
3 x Antennas
Initiator Keys
3 x Battery
3 x Shock Tube
REMOTE FIRING SYSTEM CONSUMABLES
Magnetic Mount Antennas
Magnetic Mount Antenna 1670-674
Magnetic Mount Antenna – 1673
Rubber Duckie Antennas
Rubber Duckie Antenna – 1670
Rubber Duckie Antenna – 1673
Rubber Duckie Antenna – 1674
Low-Profile Shock Tube Tip
Low Profile Shock Tube Tip
Test Lamp Assembly
Test Lamp Assembly
Automotive DC Adapter
Automotive DC Adapter – 1670
WEATHER STATION
Weather Station:
Wireless Vintage Pro 2 ISS Weather Link V-Pro Software Serial Data Logger
Weather Station:
Wireless Vintage Pro 2 ISS Weather Link V-Pro Software Serial Data Logger Mount Bracket Solar Radiation Solar Radiation & UV Sensor
PRE-SPLIT BAGS
PRE-SPLIT BAG – SMALL DIAMETER
Description
Pre-split Tube – 150mm (95mmD) x 5 meter, for 127 – 171mm D Holes complete with anchoring stick and booster insert cord, Charge capacity 45kg (10/Roll)
PRE-SPLIT BAG – LARGE DIAMETER
Description
Pre-split Tube – 200mm (127mmD) x 3 meter, for 152 – 250mm D Holes complete with anchoring stick and booster insert cord, Charge capacity 45kg (20/Roll)
Pre-split Tube – 200mm (127mmD) x 4 meter, for 152 – 250mm D Holes complete with anchoring stick and booster insert cord, Charge capacity 60kg (20/Roll)
Pre-split Tube – 200mm (127mmD) x 6 meter, for 152 – 250mm D Holes complete with anchoring stick and booster insert cord, Charge capacity 90kg (20/Roll)
Pre-split Tube – 200mm (127mmD) x 10 meter, for 152 – 250mm D Holes complete with anchoring stick and booster insert cord, Charge capacity 150kg (10/Roll)
Pre-split Tube – 300mm (190mmD) x 8 meter, for 152 – 250mm D Holes complete with anchoring stick and booster insert cord (10/Roll)
MINER’S SKI ROPE
BLACK HOLE MARKER
Description
Blast Hole Marker 250 per bag – 150mm x 150mm display size x 450mm long.
Available colours: red, white, yellow, and blue
